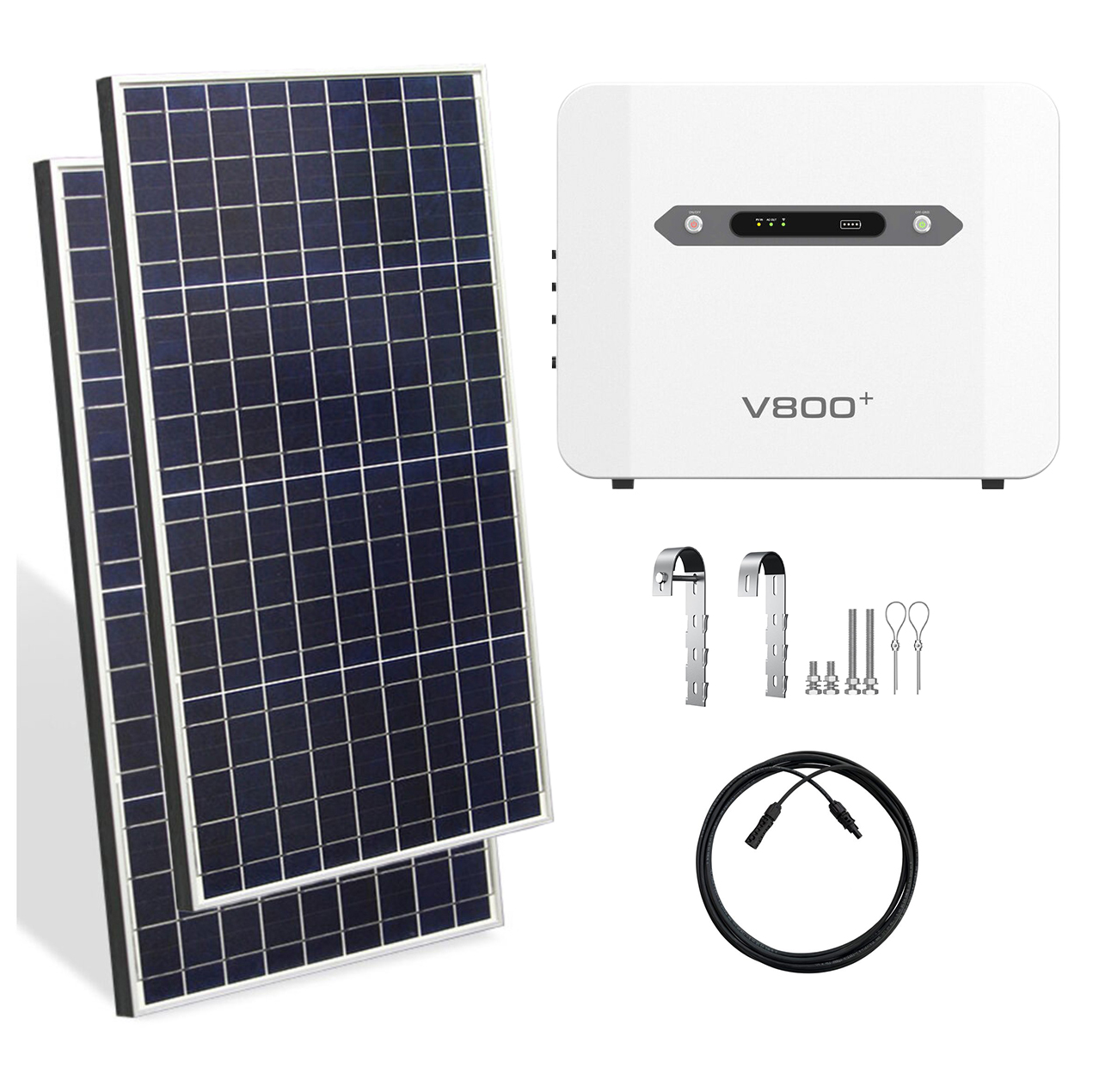

HOM-SESS03800W2P 800W Balcony Power Plants (Plug-and-play Photovoltaic System) with Built-in On-grid&Off-grid Inverter and 2 Solar Panels

Parameters

Solar Energy Storage System Parameters
Type No.HOM-SESS03800W2P
Inverter Output800W(on-grid) & 1600W(off-grid)
Battery Power2560Wh
Solar Panels Input550Wp*2=1100W
AC Input1200W
PV Cable4 mm² copper-core wire (length on request)
Plug TypeAs your needs

All-in-one ESS Parameters

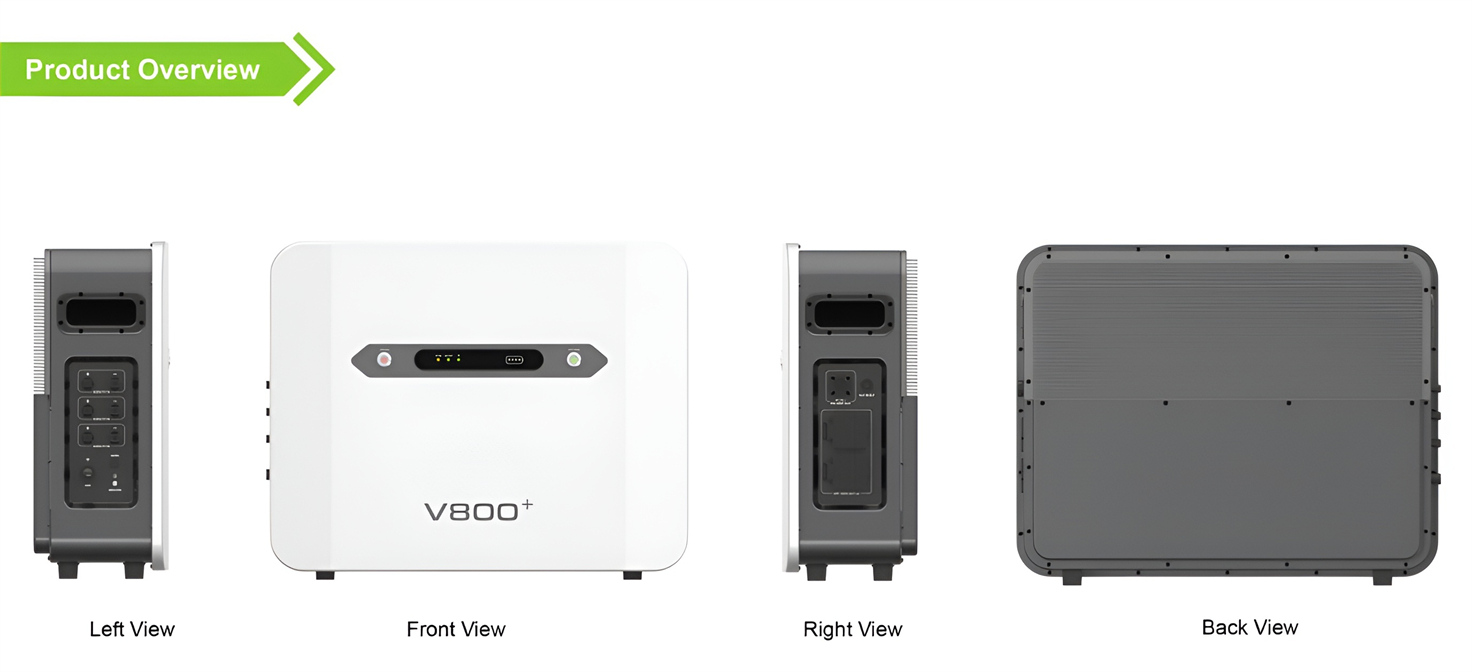

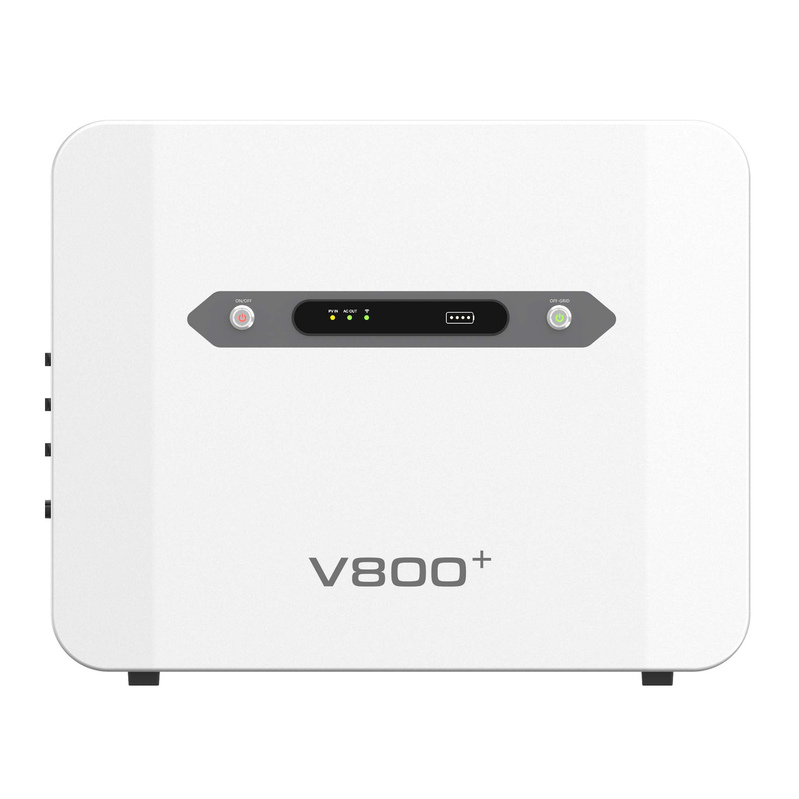

ModelHOM-V800
Battery TypeLiFePO4 battery
System VoltageDC 51.2V
System Power2560Wh
ColourWhite
Working Temperture-20°C~40
Storage Temperture-20~45
Size618*200*488mm
Weight38kg
Ingress ProtectionIP65
CertificationsCE/RF/ROHS/IP65/UN38.3
WiFi & APPSupport, APP needs customization

Built-in Hybrid Inverter Parameters

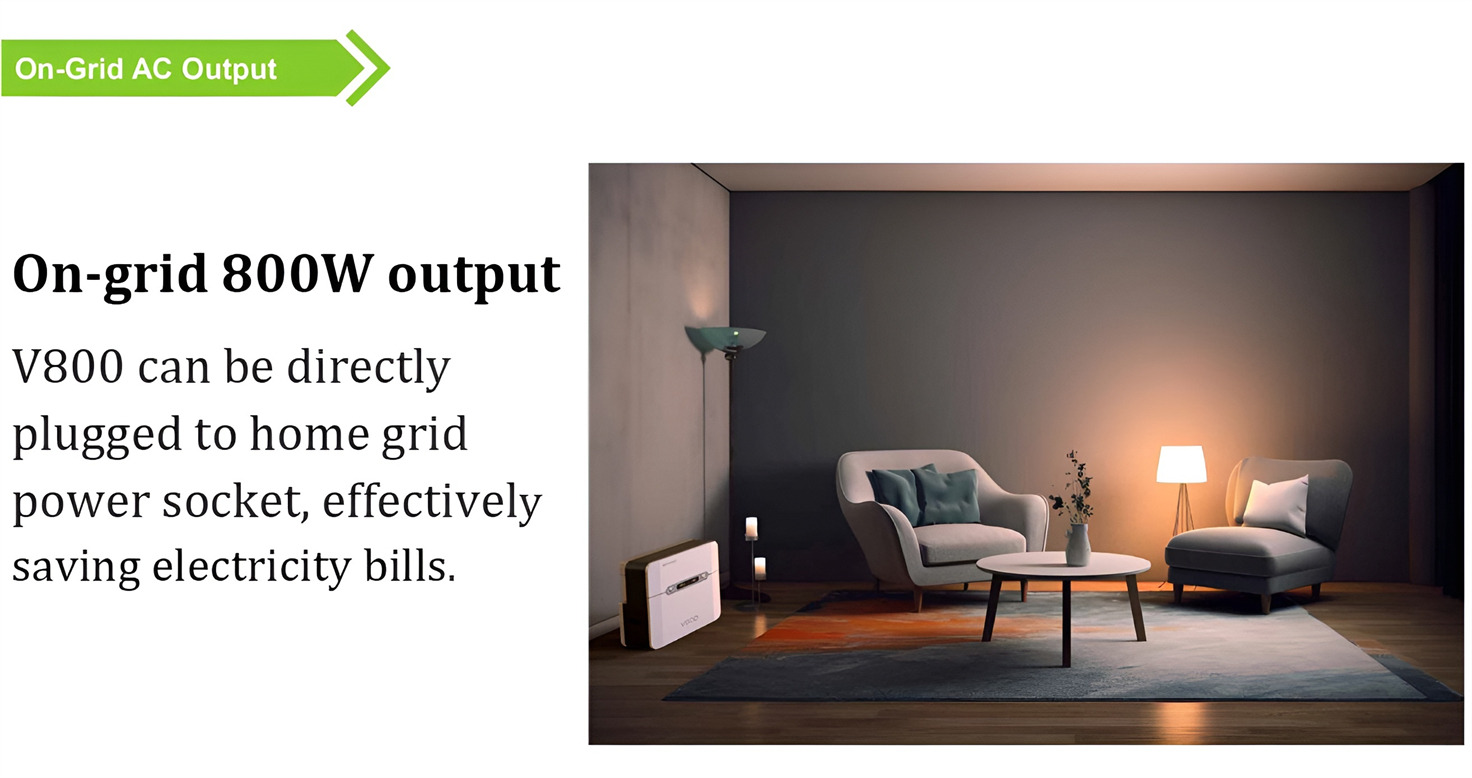

Output Power800W(on-grid) & 1600W(off-grid)
Output VoltageAC 120V/230V
Frequency50Hz/60Hz

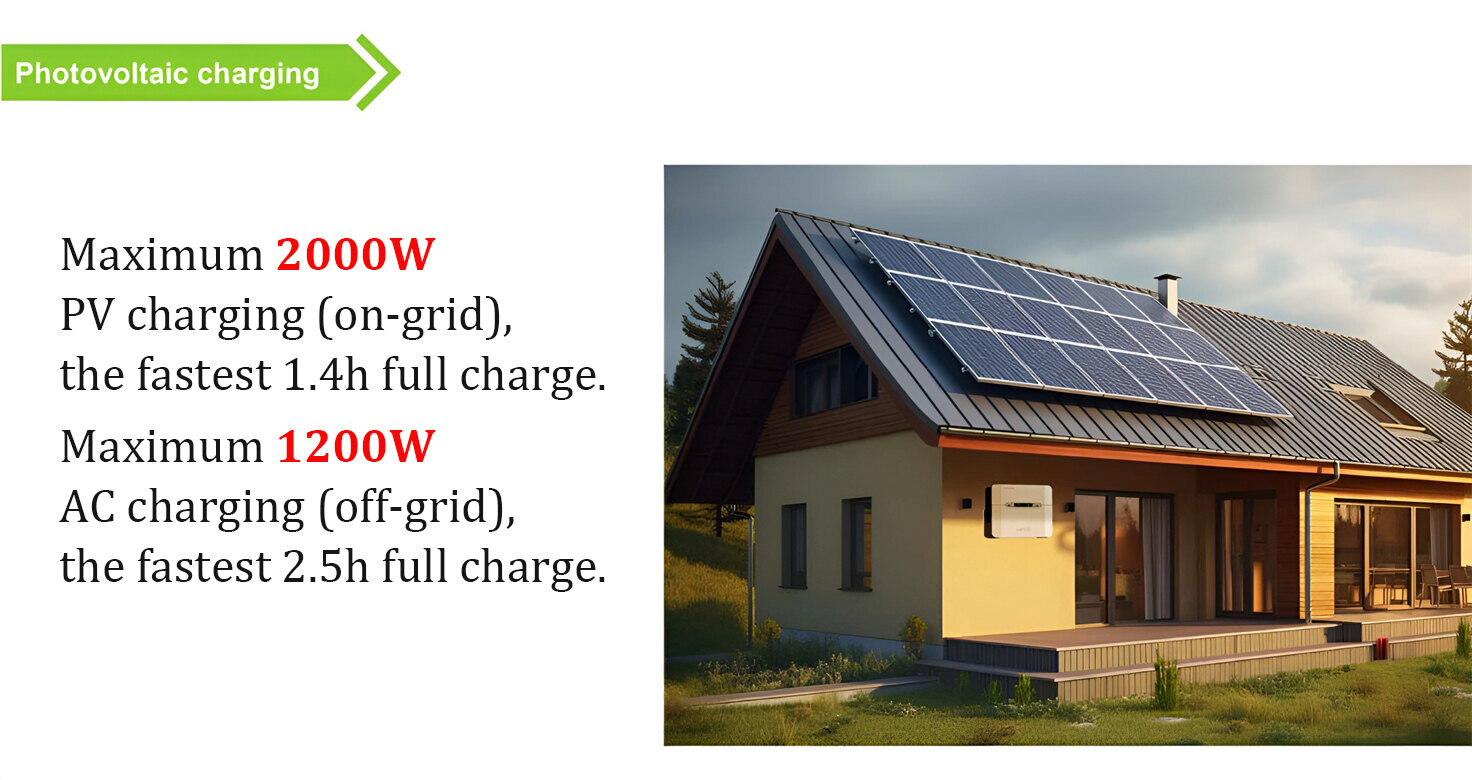

Input Power (PV)800W*1+600W*2=2000W max (on-grid)
Input Power (AC)1200W max (off-grid)

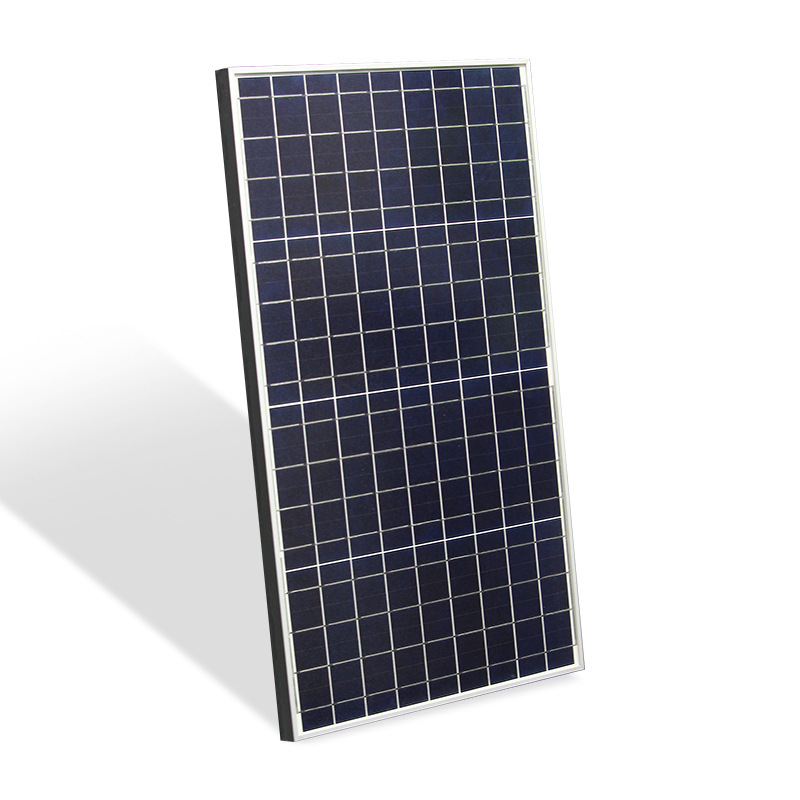

Solar Panel Parameters (per piece)
Rated Power550Wp
Operating Voltage43.35V
Size2278×1134×30mm
Weight26.3kg
  • {dede:field.title/}
  • {dede:field.title/}
  • {dede:field.title/}

    Balcony Photovoltaic Power Plants Overview

    Balcony PV power plants are small, plug-and-play photovoltaic (solar) systems designed for home electricity use. Typically, these systems have a maximum output of about 600W or 800W and can be connected directly to the home grid. They are user-friendly, easy to install, and require minimal maintenance. Such systems are becoming increasingly popular as a convenient way for homeowners to participate in renewable energy generation and lower their electricity bills.

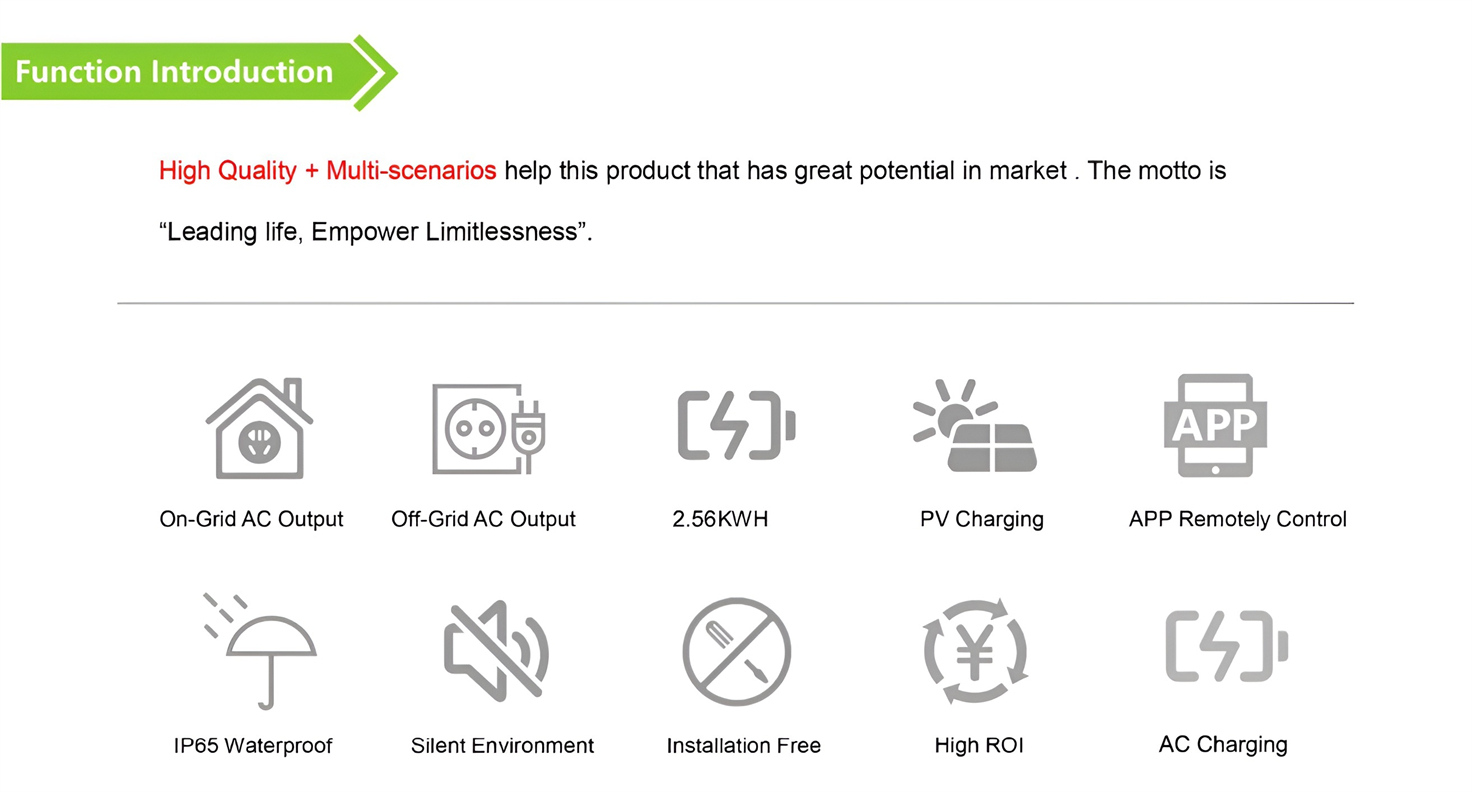

    System Features

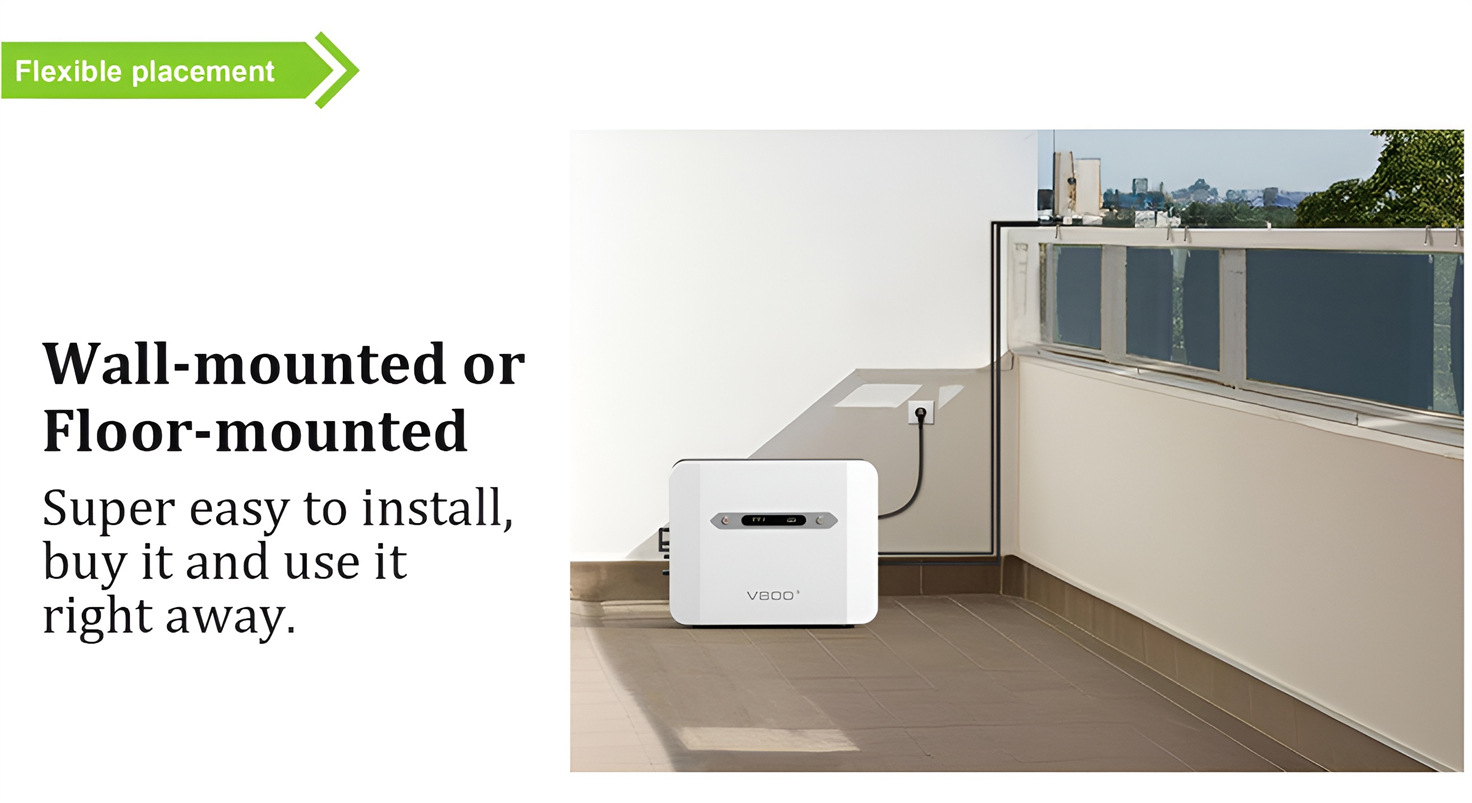

    1. Compact design: Balcony PV plants are designed with the space constraints of home use in mind, often featuring compact dimensions and lightweight construction to allow for easy installation on balconies or other limited spaces.

    2. Plug-and-play: These systems are often designed to be plug-and-play, meaning that users can install and connect the system themselves without the need for professional installation services. This convenience greatly reduces the barrier to entry for users.

    3. Low Maintenance Requirements: Due to the simple system design and the long lifespan of most modules, balcony PV plants require very low maintenance, with the user only needing to check the status of the system on a regular basis.

    4. Eco-friendly and energy-saving: By utilising solar power, balcony PV plants help to reduce a household's carbon footprint, while also lowering the cost of electricity consumption in the home.



    Application Scenarios

    Balcony PV power plants are suitable for a variety of home environments, especially for those who wish to utilise limited space to generate clean energy. Whether it is the balcony of a city flat or the terrace of a detached house, it can be an ideal place to install these systems.


    Market trends

    The market for balcony photovoltaic plants is growing rapidly as a result of increased environmental awareness and advances in photovoltaic technology. More and more homeowners are beginning to recognise the value of this type of system, not only because of its ability to provide clean energy, but also because of the financial benefits it can bring.


    Conclusion.

    Balcony PV plants represent a convenient, efficient and environmentally friendly energy solution for homes looking to reduce energy consumption and carbon emissions. This market is expected to continue to expand in the coming years as technology continues to advance and market demand grows, bringing the convenience of clean energy to more households.
