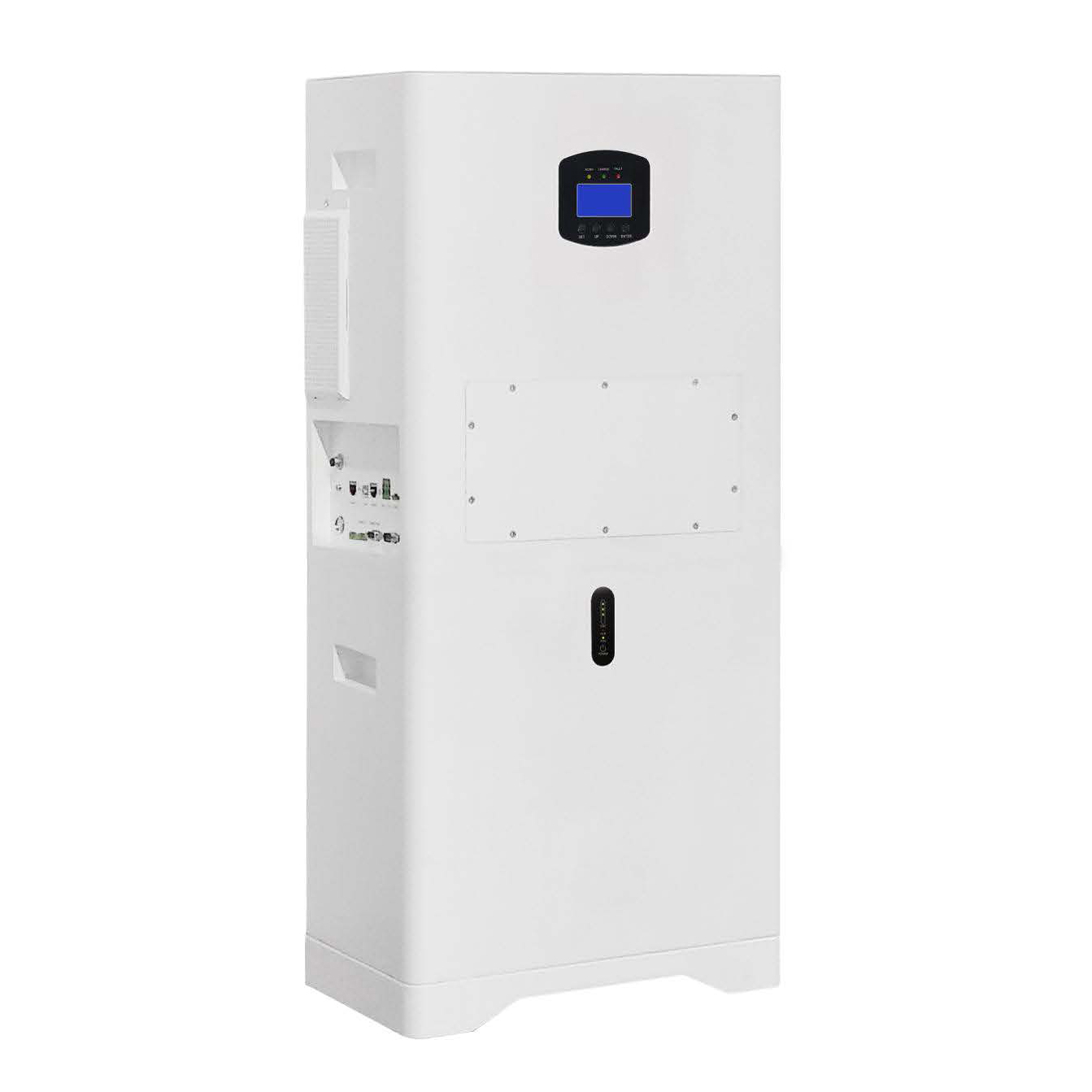

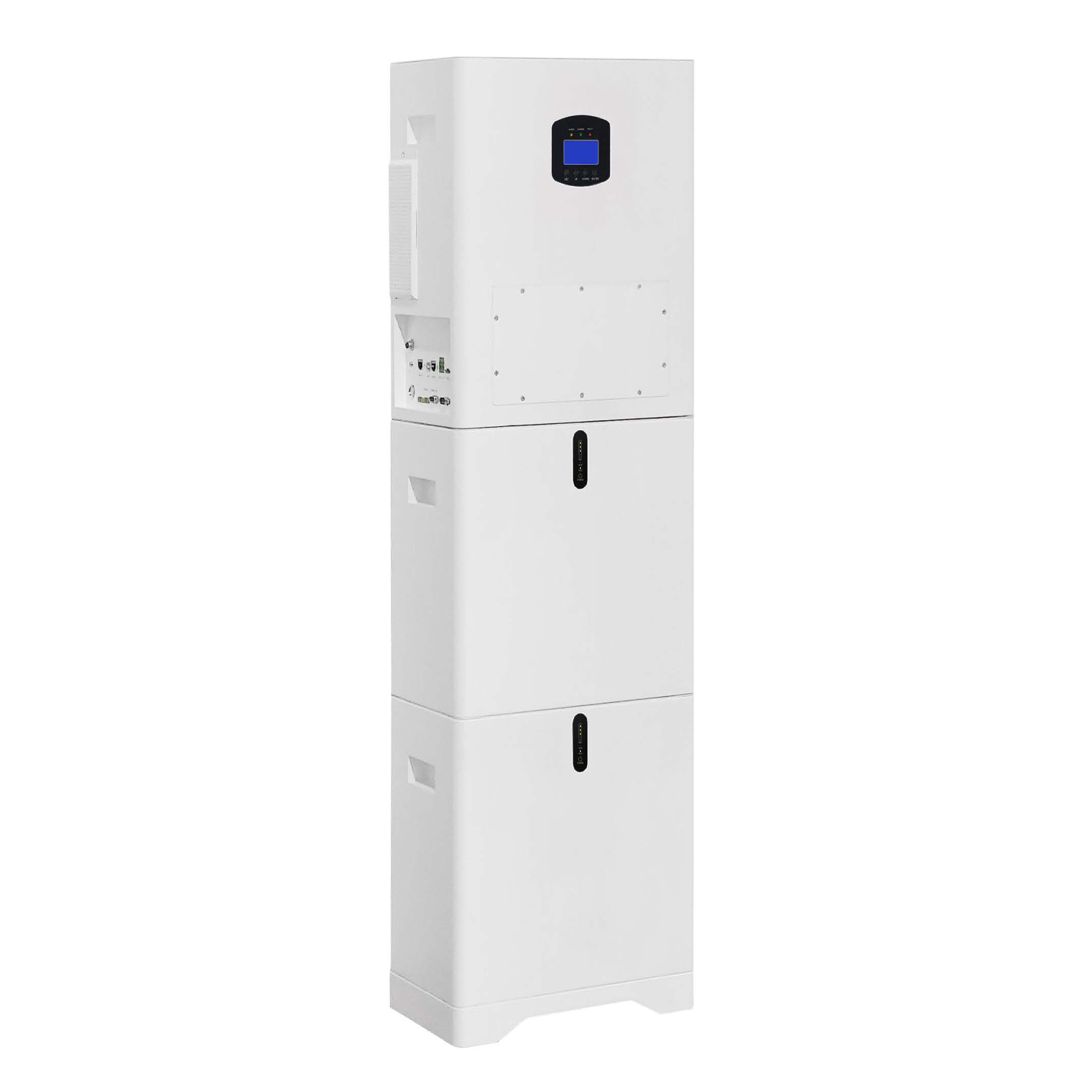

HOM-ESS48200SA 51.2V 200Ah Stackable All-in-One Energy Storage System

Parameters

Type No.HOM-ESS48200SA

Battery Module
Module TypeDC51.2V 100Ah
Module Configuration16S1P
Battery TypeLiFePO4
Charge voltage58V
Discharge cut-off voltage42V
Charge current50A
Max charge current100A
Discharge current50A
Max discharge current100A
Max peak current200A
Communication methodRS485/CAN

Off-grid inverter
Power5KW
Output Voltage230VAC
Frequency50Hz/60Hz
Input power (PV)5.5KW
Input voltage range (PV)120~450VDC
Communication connect portRS485/CAN

System Parameters
Number of Modules2 in parallel
System VoltageDC 51.2V
System Capacity200Ah
System Power10.24kWh
Material/ColourMetal/White
Size231*410*1235mm
Weight103kg
Charge Temperture0°C-50
Discharge Temperture-15-60


Download:

HOM-ESS48200SA 51.2V 200Ah Stackable All-in-One Energy Storage SystemStackable All-in-One Energy Storage System.pdf


  • {dede:field.title/}
  • {dede:field.title/}
  • {dede:field.title/}

    An Energy Storage System (ESS) is a device or set of devices used to store energy for later use. ESSs can store energy in various forms, including chemical, mechanical, thermal, and electrical energy. The stored energy can be used to power homes, buildings, or vehicles, or to supplement the power grid during periods of high demand.

    ESSs are becoming increasingly important as renewable energy sources such as solar and wind power become more popular. These sources of energy are intermittent, meaning they only produce electricity when the sun is shining or the wind is blowing. ESSs can help to smooth out these fluctuations in energy production and make renewable energy more reliable and cost-effective.

     ESS is an integrated battery system that stores your solar energy for backup protection, so when the grid goes down your power stays on. Your system detects outages and automatically recharges with sunlight to keep your appliances running for days. HomSolar's All-in-One Energy Storage System offers a modular, flexible design and can be easily customized to meet diverse customer needs.

    Integrating Solar Inverter, Battery PCS, Battery Pack, and EMS into one powerful energy system - this is our revolutionary All-in-One Home ESS.

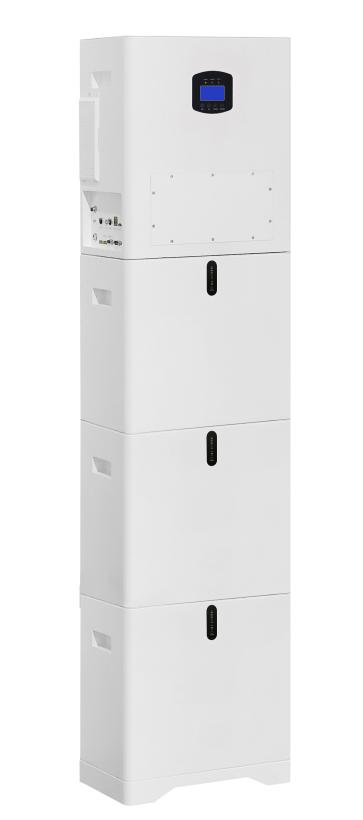

    Scalable on demand

    Whether for home or business, its unique modular and stackable design allows it to be truly scalable on demand and flexible in configuration.

    For commercial applications, you can connect multiple HomSolar's All-in-One Energy Storage Systems in parallel to meet your capacity needs.


    Simple & Capable

    Guided quick connectors between battery modules auto plug once stacked. Replacing hand-wiring and saving installation time.

    DC-DC Optimizer in each battery pack allows for parallel connections of packs. Supporting mixed use of old & new batteries and various cell vendors, capacities & SOH/SOC. Eliminating cask effect for users and simplifying warehouse management for distributors.


    Why choose HomSolar's All-in-One Energy Storage System?

    * EMS inside for precise control

    * On & off-grid compatibility

    * DC/AC ratio up to 2 (single phase)

    * Up to 4 MPP. trackers (three phase)

    * Multi-source black start

    * Remote operation

    Equipped with WIFI and Bluetooth communication, it supports Tuya cloud platform and can view battery information remotely.

    * Waterproof protection

    IP65 waterproof rating, can be used in harsh environment.

    * Convenient installation

    Support USB interface, can communicate directly with computer, easy for parameter change and troubleshooting.

    Customized/OEM/ODM Service

    HomSolar Supports Lifepo4 battery pack customization/OEM/ODM service, welcome to contact us and tell us your needs.

    HomSolar Supports Lifepo4 battery pack customization/OEM/ODM service

    HomSolar Supports Lifepo4 battery pack customization/OEM/ODM Energy Storage System Battery Solution Factory


    HomSolar: Your One-stop LiFePO4 Battery Pack & ESS Solution Manufacturer

    Our line of LiFePO4 (LFP) batteries offer a solution to demanding applications that require a lighter weight, longer life, and higher capacity battery. Features include advanced battery management systems (BMS), Bluetooth® communication and active intelligent monitoring.

    HomSolar: Your One-stop LiFePO4 Battery Pack & ESS Solution Manufacturer


    Customised Lithium Iron Phosphate Battery Casing

    ABS plastic housing, aluminium housing, stainless steel housing and iron housing are available, and can also be designed and customised according to your needs.

    Customised Lithium Iron Phosphate Battery Casing


    HomSolar Smart BMS

    Intelligent Battery Management System for HomSolar Energy Storage System. Bluetooth, temperature sensor, LCD display, CAN interface, UART interface also available.

    Intelligent Battery Management System for HomSolar Energy Storage System

    HomSolar Multifunctional Smart BMS. Bluetooth, temperature sensor, LCD display, CAN interface, UART interface also available


    Terminals & Plugs Can Be Customized

    A wide range of terminals and plugs can be customised to suit the application needs of your battery products.

    A wide range of terminals and plugs can be customised to suit the application needs of your battery products


    Well-designed Solutions for Energy Storage Systems

    We will design the perfect energy storage system solution according to your needs, so that you can easily solve the specific industry applications of battery products.

    Well-designed Solutions for Energy Storage Systems

    We will design the perfect energy storage system solution according to your needs

    you can easily solve the specific industry applications of battery products


    About Our Battery Cells

    Our energy storage system products use brand new grade A LiFePO4 cells with a battery lifespan of more than 4,000 charge/discharge cycles.

    brand new grade A LiFePO4 cells with a battery lifespan of more than 4,000 charge/discharge cycles

    HomSolar Lithium Iron Phosphate Charge and Discharge Test Curves

    HomSolar LFP LiFePO4 cell Lifespan Test Curves


    Applications in Different Industries

    We supply customized & OEM battery pack, assemble cells with wiring, fuse and plastic cover, all the cell wires connected to PCB plug or built BMS.
    Applications: E-bike, Electric Scooter, Golf Carts, RV, Electric Wheelchair, Electric Tools, Robot Cleaner, Robot Sweeper, Solar Energy Storage System, Emergency Light, Solar Power Light, Medical Equipment, UPS Backup Power Supply.
    We can provide you with customized services. We have the ability to provide a vertical supply chain, from single cells to pack/module and to a complete power solution with BMS, etc.

    HomSolar Lithium Iron Phosphate Battery Packs in Different Industries

    HomSolar LFP LiFePO4 Battery Packs Applications: E-bike, Electric Scooter, Golf Carts, RV, Electric Wheelchair, Electric Tools, Robot Cleaner, Robot Sweeper, Solar Energy Storage System, Emergency Light, Solar Power Light, Medical Equipment, UPS Backup Power Supply
