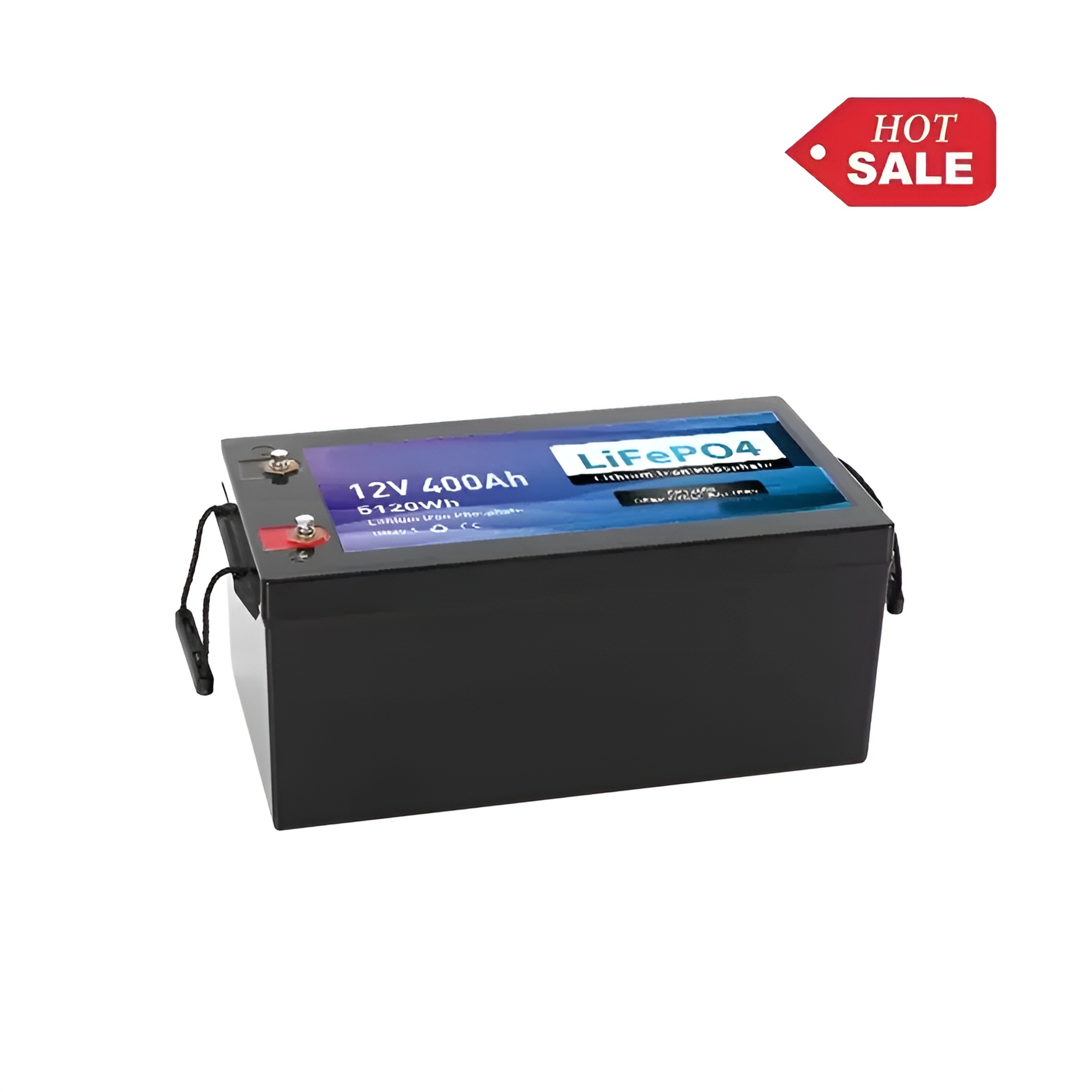

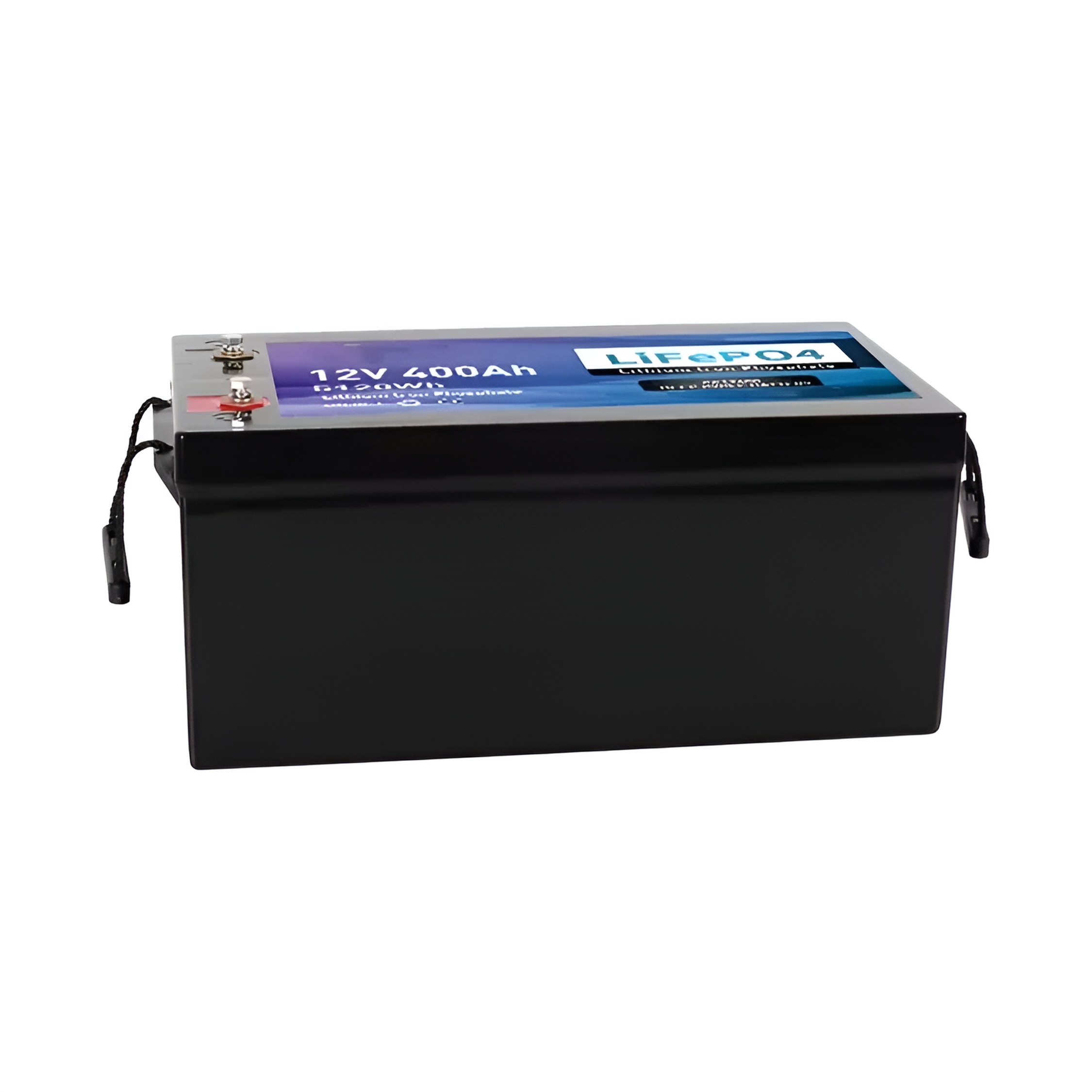

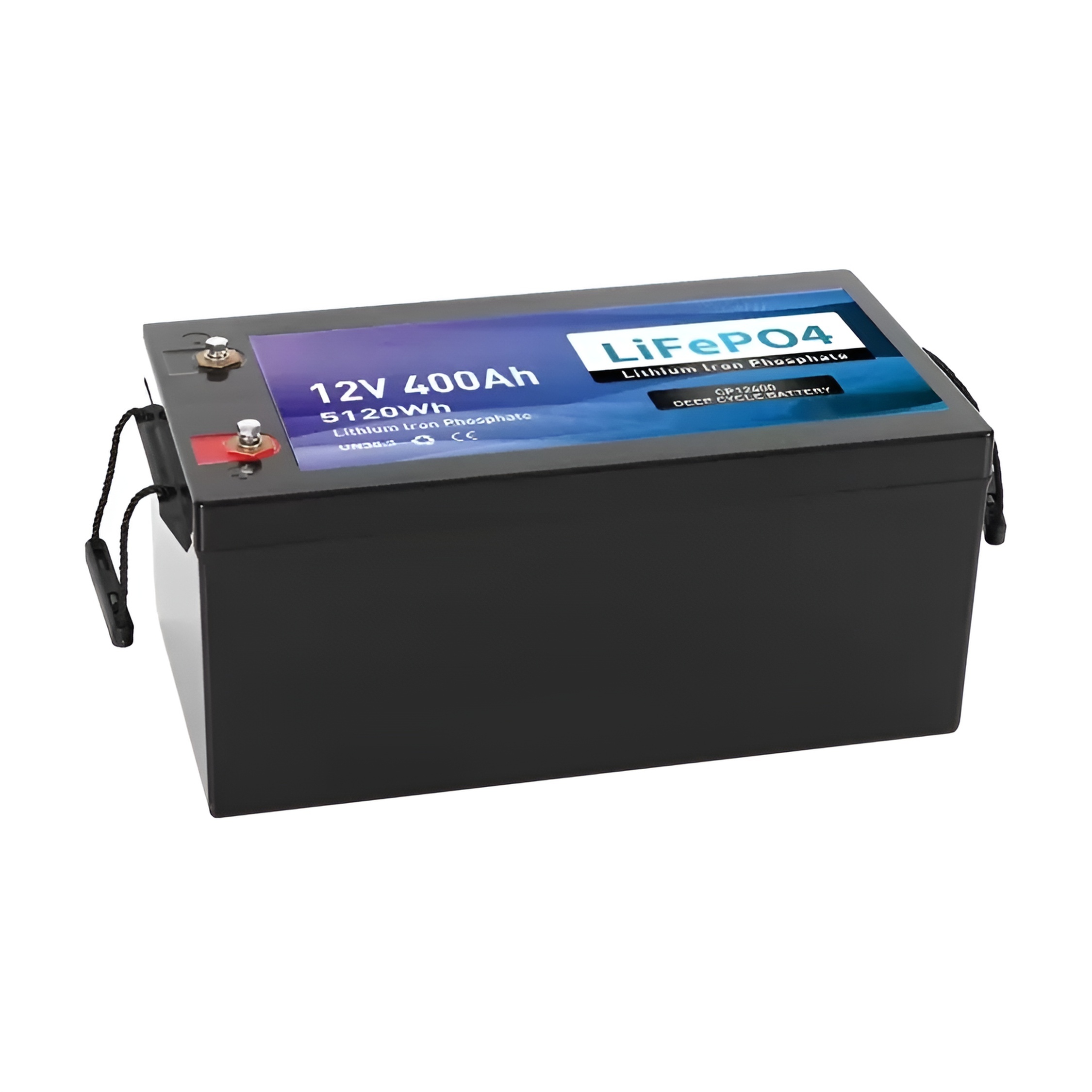

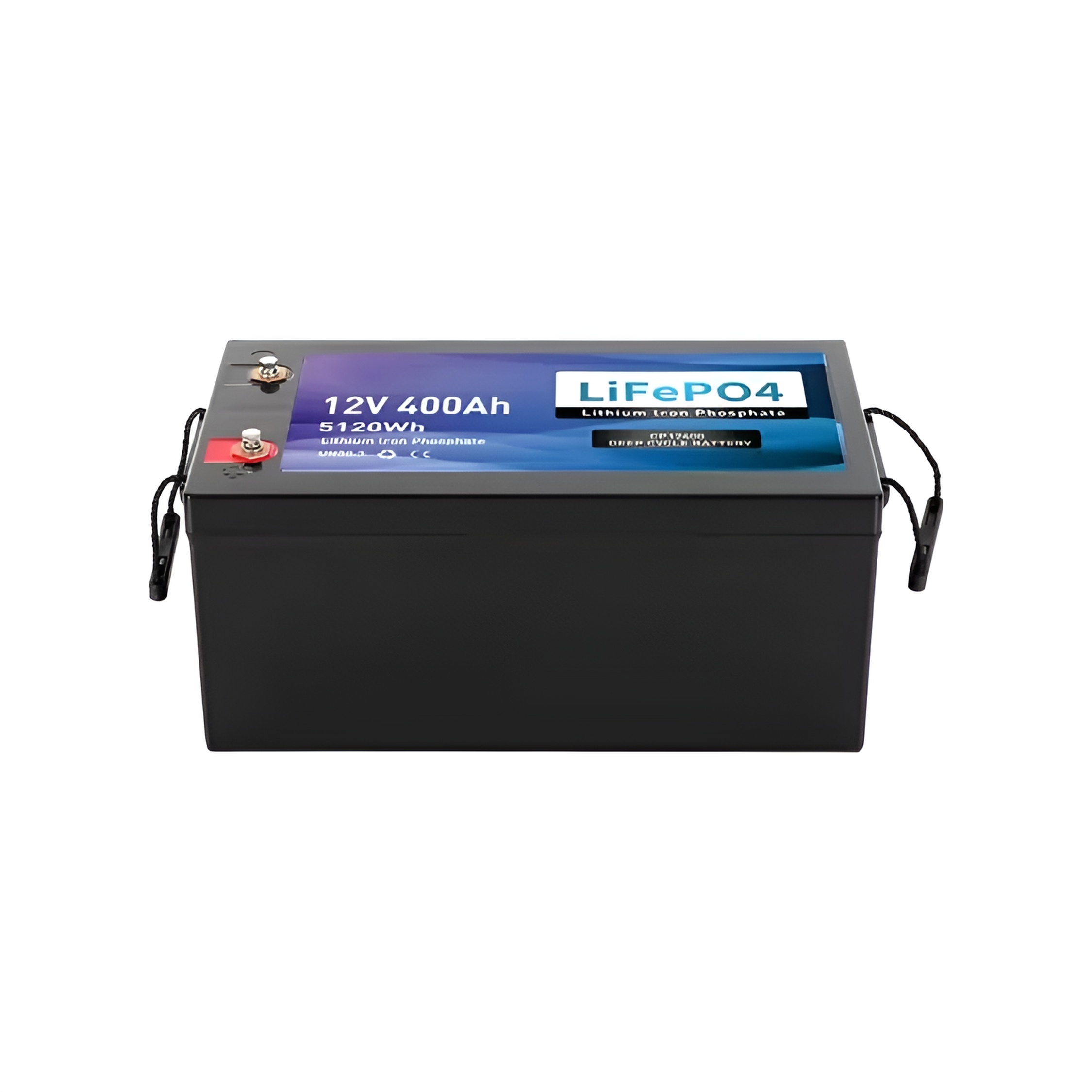

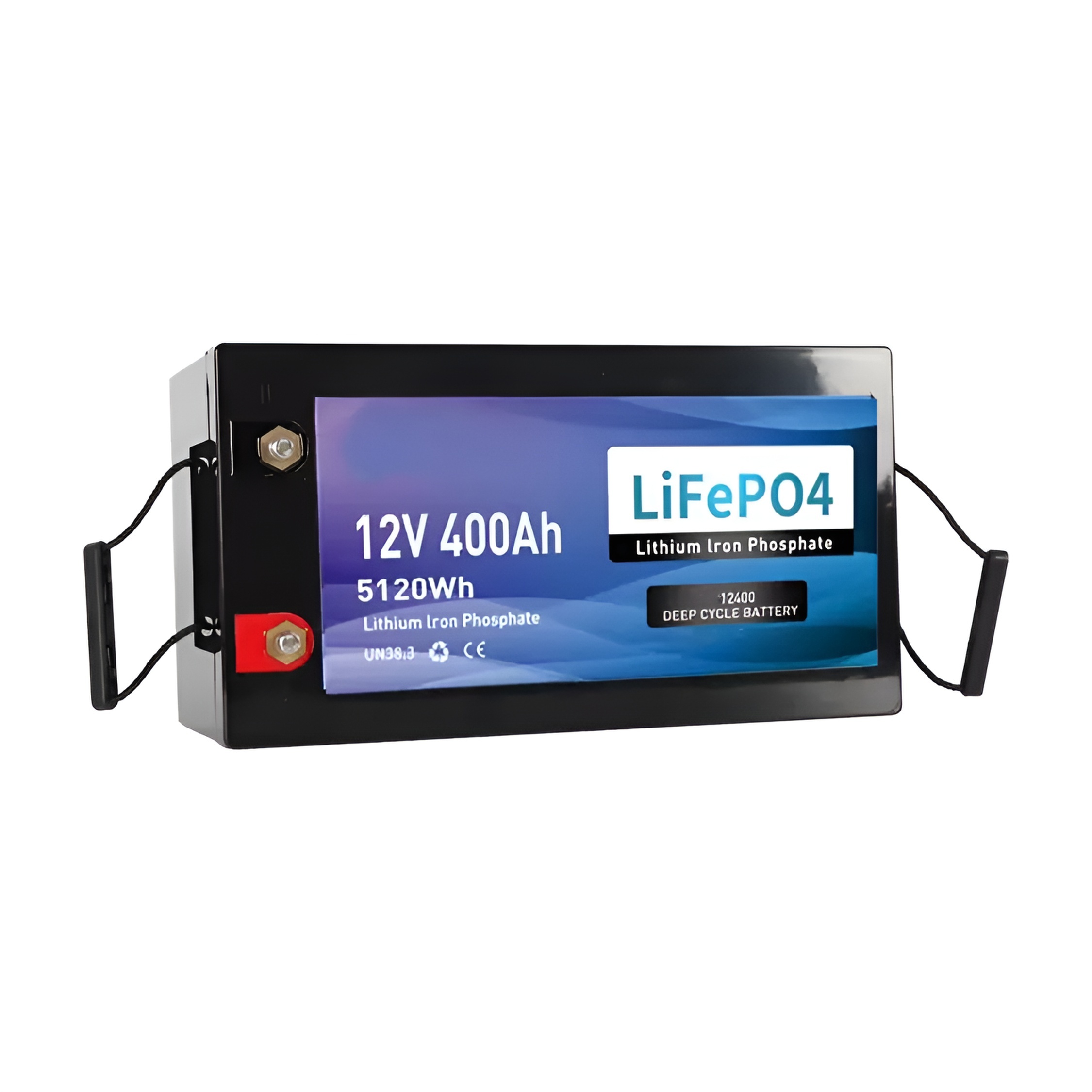

HOM-SF12400 12V 400Ah Lithium ion Battery

Parameters

ModelHOM-SF12400
Customizable/OEM/ODMAvailable
Customised Capacity/VoltageSupport
Cells TypeGrade A, Brand   New LiFePO4 Battery Cells
Nominal VoltageDC 12.8V
Rated Capacity400Ah   (0.2C/25°C)
Energy5120Wh
Operating Voltage RangeDC 10V~14.6V   (Typical: 12.8V)
Charging Cut-off VoltageDC 14.6V
Discharge Cut-off VoltageDC 10V±0.2V
Charging Current200A Max
Discharge Current400A Max
Cycle life6000 @80%DOD, 0.5C/0.5C, 25
ShellABS   Plastic/Metal/Customized
Terminal StudM8/Customized
Alarm & PotectionOvervoltage, Undervoltage,   Overcurrent, Short-circuit, Overheating (BlueTooth/APP/LCD Display/GPS   Tracking and other features available)
ApplicationsE-Bike, Electric Scooter,   E-rickshaw, Motorized Wheelchair, RV, Caravan, Camping, Solar Power System,   Energy Storage System (ESS), Golf Cart, Jump Starter, Marine, Trolling Motor,   Riding Lawn Mower, etc.
Cooling ModeNatural Cooling
Altitude≤4000m
Humidity15%~85%
Charge Temperature0°C~50°C
Dischage   Temperature-20°C~60°C
Storage Temperature-20°C~50°C
  • {dede:field.title/}
  • {dede:field.title/}
  • {dede:field.title/}
  • {dede:field.title/}
  • {dede:field.title/}

    HomSolar's 12V Lithium ion Battery packs are Lithium Iron Phosphate (LiFePO4) batteries and are available in various capacities. They can be connected in series, parallel and series/parallel so that a battery bank can be built for system voltages of 12 V, 24 V or 48 V. The maximum number of batteries in one system is 20, which results in a maximum energy storage of 84 kWh in a 12 V system and up to 102 kWh in a 24V and 48V system.

    Our LiFePO4 batteries are ideal for most industries such as RVs, Camping, E-bike, Energy Storage System, UPS, Golf Cart, etc; and safer than lithium-ion battery packs.


    Benefits of LiFePO4 Batteries:

    More power: Greater energy density and battery capacity than a lead acid battery.

    Rapid charging: Up to 10 x faster than traditional lead acid batteries.

    Environmentally friendly: Using iron phosphate instead of lithium cobalt oxide requires less lithium mining and other raw materials such as nickel, which is better for the environment.

    Saves money: LiFePO4 lithium iron batteries are cheaper over their working life.

    Optimal Safety: Built-in Battery Management System for safety and performance.


    If you’re fed up with failing batteries and whether you need more reliable power, faster charging, lighter weight, or a longer lifespan, HomSolar Lithium has the answer!

    Customized/OEM/ODM Service

    HomSolar Supports Lifepo4 battery pack customization/OEM/ODM service, welcome to contact us and tell us your needs.

    HomSolar Supports Lifepo4 battery pack customization/OEM/ODM service

    HomSolar Supports Lifepo4 battery pack customization/OEM/ODM Energy Storage System Battery Solution Factory


    HomSolar: Your One-stop LiFePO4 Battery Pack & ESS Solution Manufacturer

    Our line of LiFePO4 (LFP) batteries offer a solution to demanding applications that require a lighter weight, longer life, and higher capacity battery. Features include advanced battery management systems (BMS), Bluetooth® communication and active intelligent monitoring.

    HomSolar: Your One-stop LiFePO4 Battery Pack & ESS Solution Manufacturer


    Customised Lithium Iron Phosphate Battery Casing

    ABS plastic housing, aluminium housing, stainless steel housing and iron housing are available, and can also be designed and customised according to your needs.

    Customised Lithium Iron Phosphate Battery Casing


    HomSolar Smart BMS

    Intelligent Battery Management System for HomSolar Energy Storage System. Bluetooth, temperature sensor, LCD display, CAN interface, UART interface also available.

    Intelligent Battery Management System for HomSolar Energy Storage System

    HomSolar Multifunctional Smart BMS. Bluetooth, temperature sensor, LCD display, CAN interface, UART interface also available


    Terminals & Plugs Can Be Customized

    A wide range of terminals and plugs can be customised to suit the application needs of your battery products.

    A wide range of terminals and plugs can be customised to suit the application needs of your battery products


    Well-designed Solutions for Energy Storage Systems

    We will design the perfect energy storage system solution according to your needs, so that you can easily solve the specific industry applications of battery products.

    Well-designed Solutions for Energy Storage Systems

    We will design the perfect energy storage system solution according to your needs

    you can easily solve the specific industry applications of battery products


    About Our Battery Cells

    Our energy storage system products use brand new grade A LiFePO4 cells with a battery lifespan of more than 4,000 charge/discharge cycles.

    brand new grade A LiFePO4 cells with a battery lifespan of more than 4,000 charge/discharge cycles

    HomSolar Lithium Iron Phosphate Charge and Discharge Test Curves

    HomSolar LFP LiFePO4 cell Lifespan Test Curves


    Applications in Different Industries

    We supply customized & OEM battery pack, assemble cells with wiring, fuse and plastic cover, all the cell wires connected to PCB plug or built BMS.
    Applications: E-bike, Electric Scooter, Golf Carts, RV, Electric Wheelchair, Electric Tools, Robot Cleaner, Robot Sweeper, Solar Energy Storage System, Emergency Light, Solar Power Light, Medical Equipment, UPS Backup Power Supply.
    We can provide you with customized services. We have the ability to provide a vertical supply chain, from single cells to pack/module and to a complete power solution with BMS, etc.

    HomSolar Lithium Iron Phosphate Battery Packs in Different Industries

    HomSolar LFP LiFePO4 Battery Packs Applications: E-bike, Electric Scooter, Golf Carts, RV, Electric Wheelchair, Electric Tools, Robot Cleaner, Robot Sweeper, Solar Energy Storage System, Emergency Light, Solar Power Light, Medical Equipment, UPS Backup Power Supply
