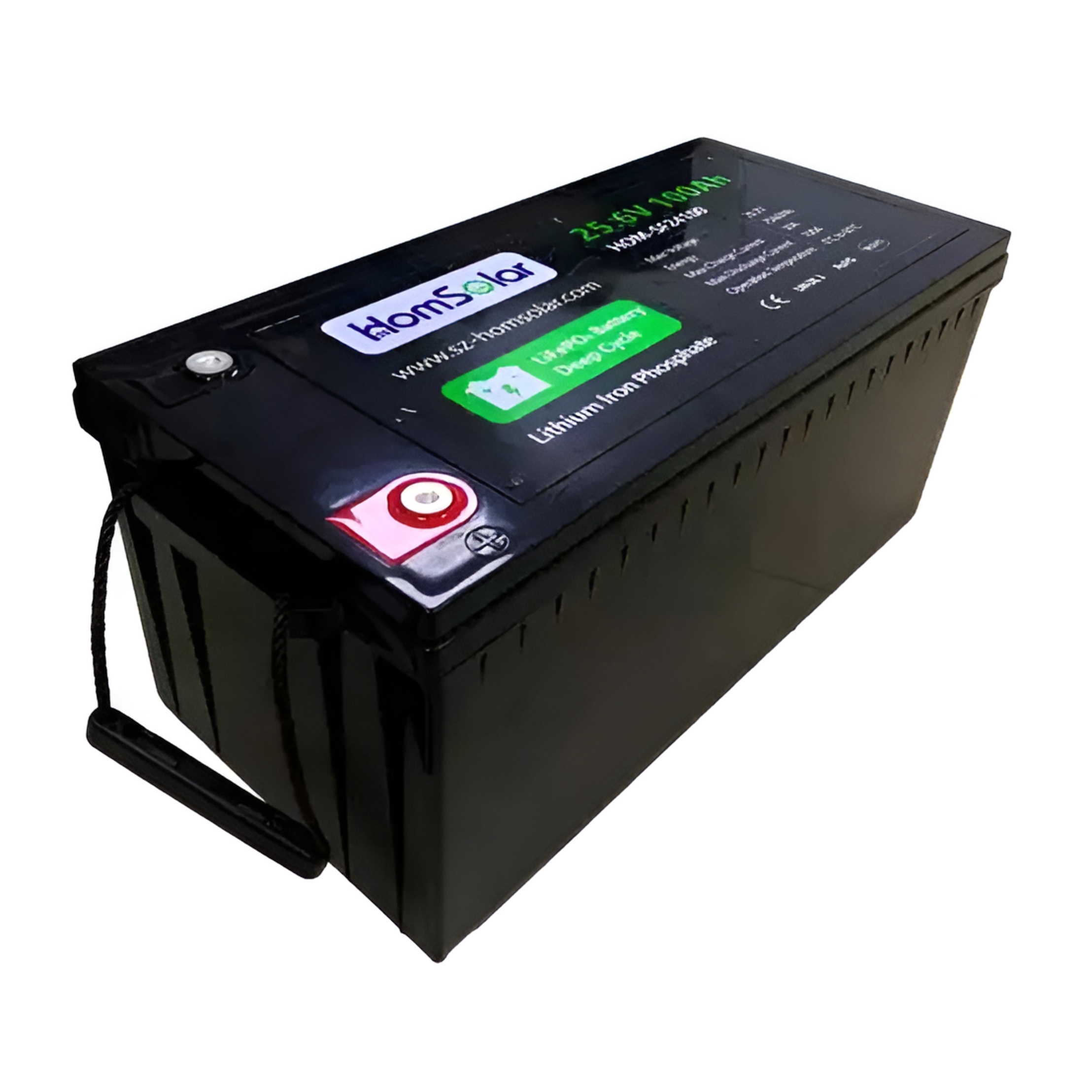

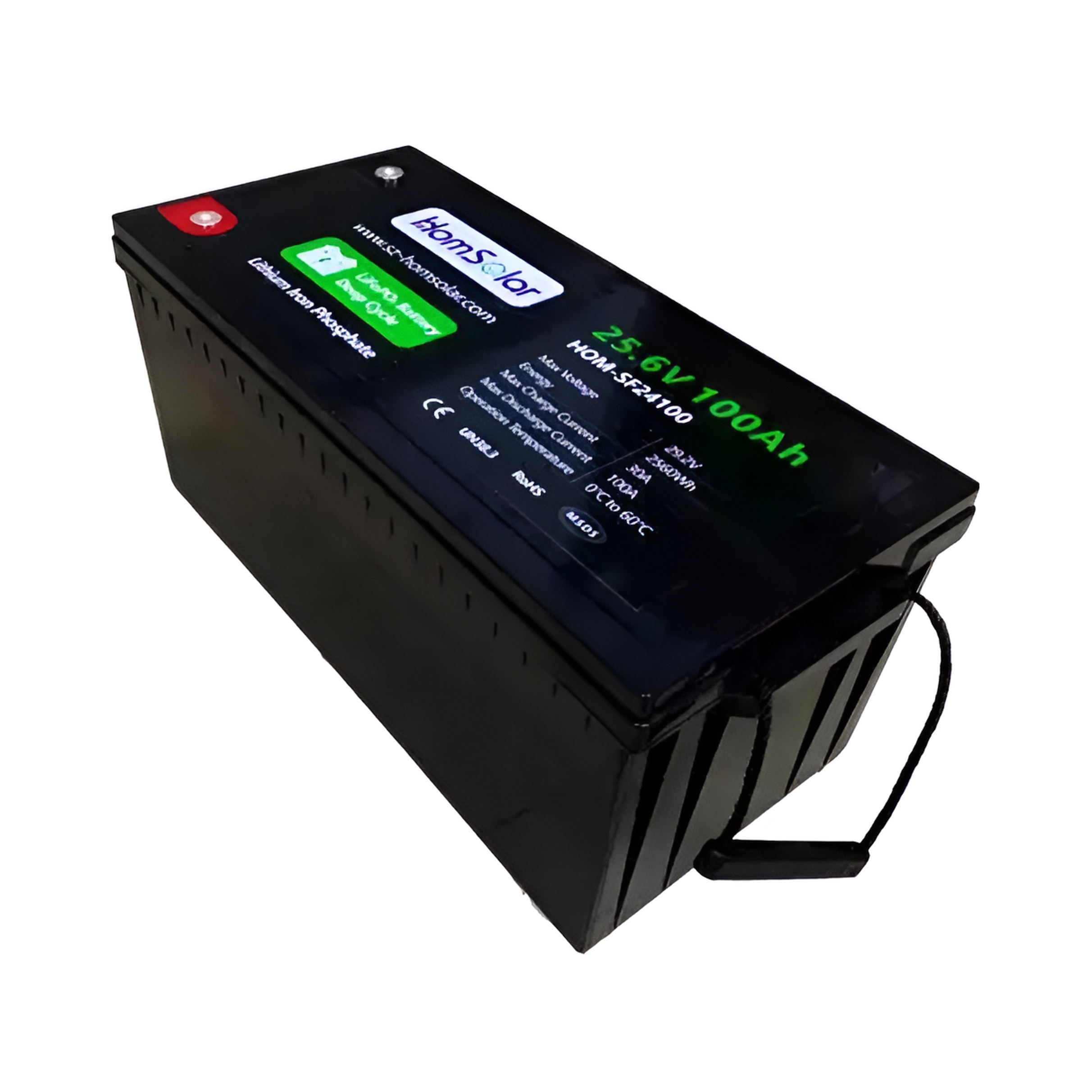

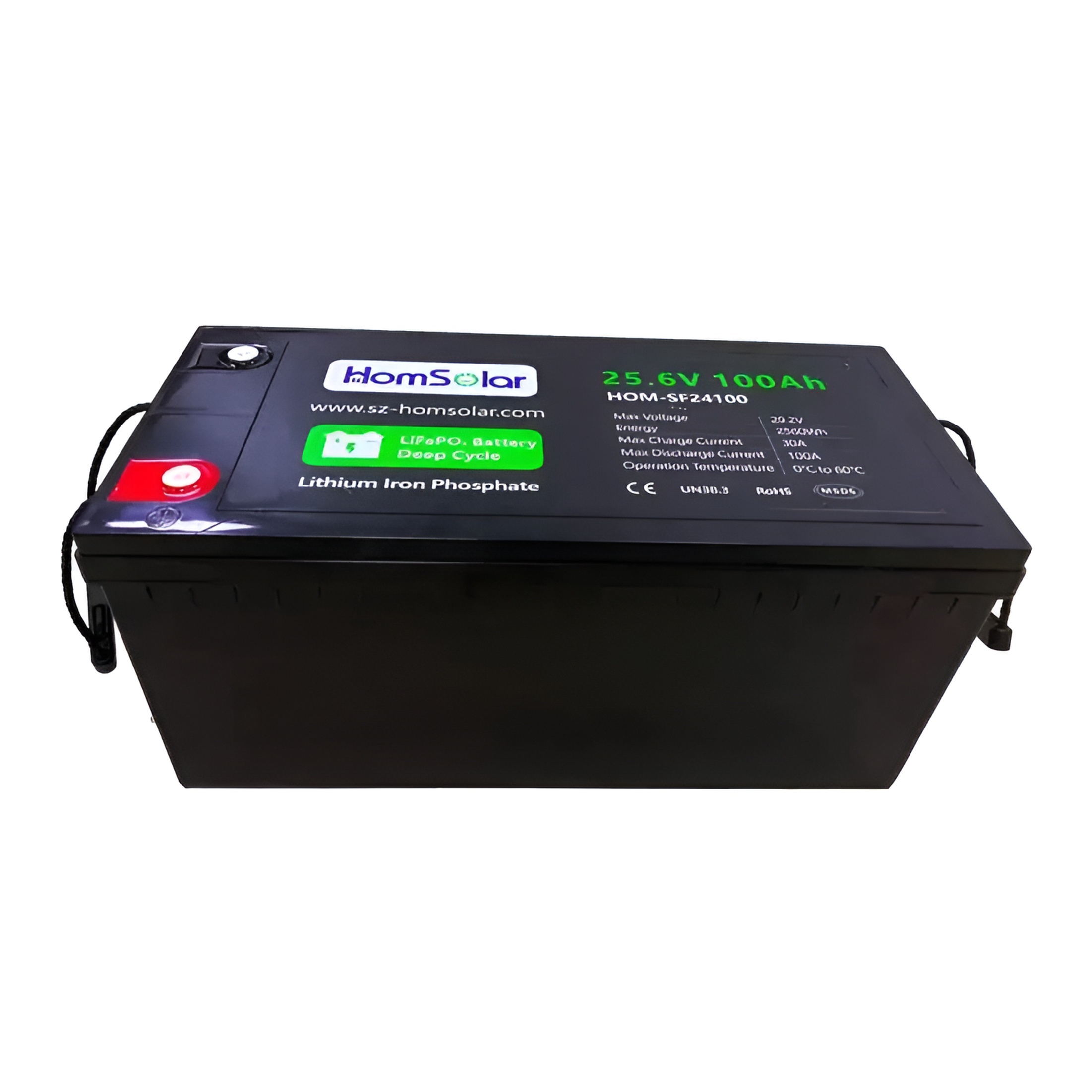

HOM-SF24100 24 Volt 100Ah LiFePO4 Battery

Parameters

ModelHOM-SF24100
Customizable/OEM/ODMAvailable
Customised Capacity/VoltageSupport
Cells TypeGrade A, Brand   New LiFePO4 Battery Cells
Nominal VoltageDC 25.6V
Rated Capacity100Ah   (0.2C/25°C)
Energy2560Wh
Operating Voltage RangeDC   20V~29.6V(typical:25.6V)
Charging Cut-off VoltageDC 29.6V
Discharge Cut-off VoltageDC 20V±1V
Charging Current50A Max
Discharge Current100A Max
Cycle life6000 @80%DOD, 0.5C/0.5C, 25
ShellABS   Plastic/Metal/Customized
Terminal StudM8/Customized
Alarm & PotectionOvervoltage, Undervoltage,   Overcurrent, Short-circuit, Overheating (BlueTooth/APP/LCD Display/GPS   Tracking and other features available)
ApplicationsE-Bike, Electric Scooter,   E-rickshaw, Motorized Wheelchair, RV, Caravan, Camping, Solar Power System,   Energy Storage System (ESS), Golf Cart, Jump Starter, Marine, Trolling Motor,   Riding Lawn Mower, etc.
Cooling ModeNatural Cooling
Altitude≤4000m
Humidity15%~85%
Charge Temperature0°C~50°C
Dischage   Temperature-20°C~60°C
Storage Temperature-20°C~50°C
  • {dede:field.title/}
  • {dede:field.title/}
  • {dede:field.title/}
  • {dede:field.title/}
  • {dede:field.title/}

    HomSolar's LiFePO4 24V Lithium Iron Phosphate Battery has twice the power, half the weight, and lasts 8 times longer than a sealed lead acid battery, no maintenance, extremely safe and very low toxicity for environment. Our line of LiFePO4 offer a solution to demanding applications that require a lighter weight, longer life and higher capacity battery.

    For standby power, this range has a nominal 5 - 8 year life. The battery has a low-pressure relief valve, Excellent recovery from deep discharge, and low self-discharge of just 3% per month.

    Most heavy vehicles use 24 Volt electrical systems because of the very high power needed to start large engines. A 24 Volt system is made up of two 12 Volt batteries connected in series and is known as a pack.


    BATTERY MANAGEMENT SYSTEM (BMS):

    HomSolar's lithium battery pack is fully protected by a sophisticated and specially designed lithium battery management system (BMS) that constantly monitors every cell to ensure the battery is always optimized for the best performance and life. The built-in intelligent BMS emphasis on safety by automatically balancing cells and protecting them from overcharge, over-discharge, over current, short circuit, high and low-temperature protection functions.

    Customized/OEM/ODM Service

    HomSolar Supports Lifepo4 battery pack customization/OEM/ODM service, welcome to contact us and tell us your needs.

    HomSolar Supports Lifepo4 battery pack customization/OEM/ODM service

    HomSolar Supports Lifepo4 battery pack customization/OEM/ODM Energy Storage System Battery Solution Factory


    HomSolar: Your One-stop LiFePO4 Battery Pack & ESS Solution Manufacturer

    Our line of LiFePO4 (LFP) batteries offer a solution to demanding applications that require a lighter weight, longer life, and higher capacity battery. Features include advanced battery management systems (BMS), Bluetooth® communication and active intelligent monitoring.

    HomSolar: Your One-stop LiFePO4 Battery Pack & ESS Solution Manufacturer


    Customised Lithium Iron Phosphate Battery Casing

    ABS plastic housing, aluminium housing, stainless steel housing and iron housing are available, and can also be designed and customised according to your needs.

    Customised Lithium Iron Phosphate Battery Casing


    HomSolar Smart BMS

    Intelligent Battery Management System for HomSolar Energy Storage System. Bluetooth, temperature sensor, LCD display, CAN interface, UART interface also available.

    Intelligent Battery Management System for HomSolar Energy Storage System

    HomSolar Multifunctional Smart BMS. Bluetooth, temperature sensor, LCD display, CAN interface, UART interface also available

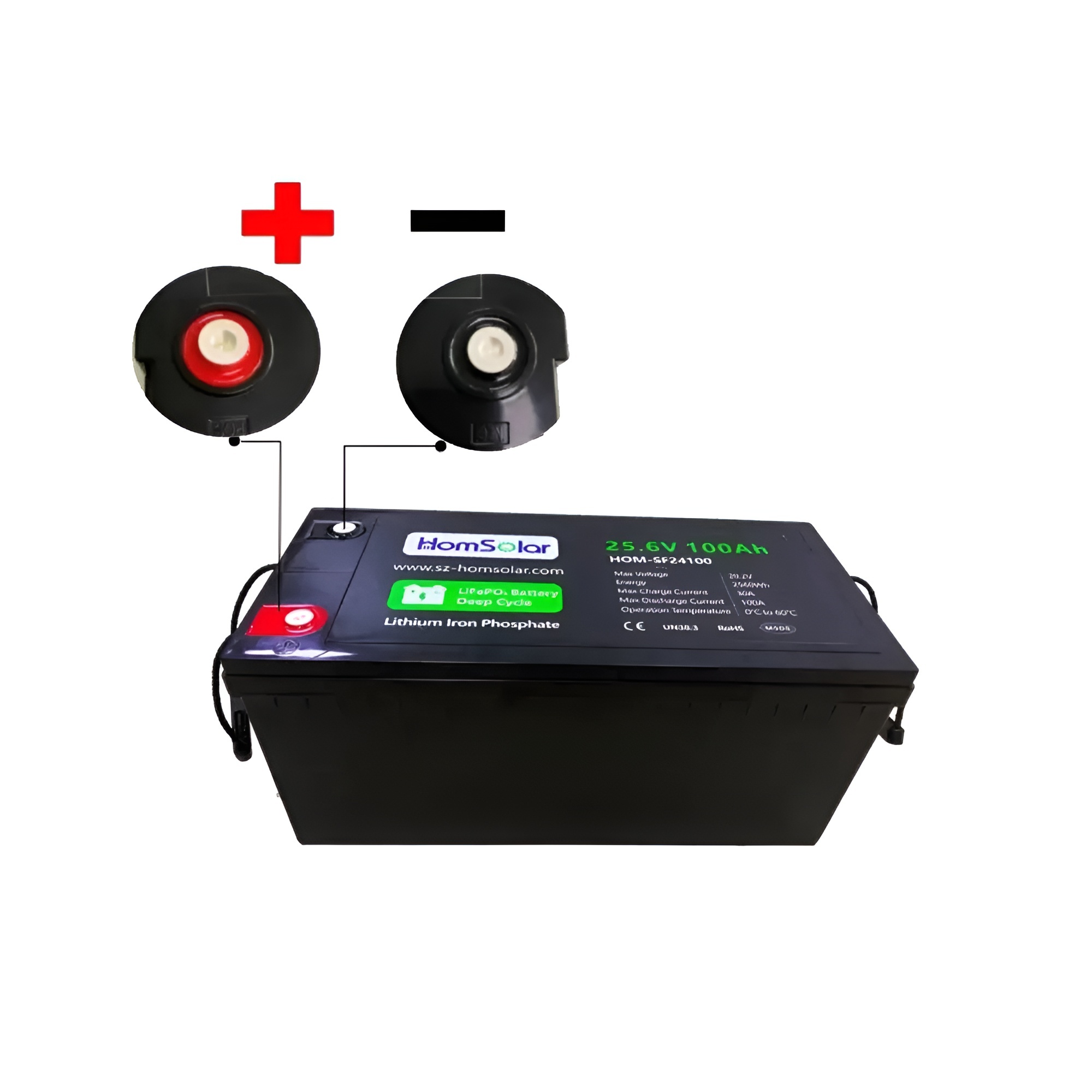

    Terminals & Plugs Can Be Customized

    A wide range of terminals and plugs can be customised to suit the application needs of your battery products.

    A wide range of terminals and plugs can be customised to suit the application needs of your battery products


    Well-designed Solutions for Energy Storage Systems

    We will design the perfect energy storage system solution according to your needs, so that you can easily solve the specific industry applications of battery products.

    Well-designed Solutions for Energy Storage Systems

    We will design the perfect energy storage system solution according to your needs

    you can easily solve the specific industry applications of battery products


    About Our Battery Cells

    Our energy storage system products use brand new grade A LiFePO4 cells with a battery lifespan of more than 4,000 charge/discharge cycles.

    brand new grade A LiFePO4 cells with a battery lifespan of more than 4,000 charge/discharge cycles

    HomSolar Lithium Iron Phosphate Charge and Discharge Test Curves

    HomSolar LFP LiFePO4 cell Lifespan Test Curves


    Applications in Different Industries

    We supply customized & OEM battery pack, assemble cells with wiring, fuse and plastic cover, all the cell wires connected to PCB plug or built BMS.
    Applications: E-bike, Electric Scooter, Golf Carts, RV, Electric Wheelchair, Electric Tools, Robot Cleaner, Robot Sweeper, Solar Energy Storage System, Emergency Light, Solar Power Light, Medical Equipment, UPS Backup Power Supply.
    We can provide you with customized services. We have the ability to provide a vertical supply chain, from single cells to pack/module and to a complete power solution with BMS, etc.

    HomSolar Lithium Iron Phosphate Battery Packs in Different Industries

    HomSolar LFP LiFePO4 Battery Packs Applications: E-bike, Electric Scooter, Golf Carts, RV, Electric Wheelchair, Electric Tools, Robot Cleaner, Robot Sweeper, Solar Energy Storage System, Emergency Light, Solar Power Light, Medical Equipment, UPS Backup Power Supply
